How to Proactively Monitor PLEG Health with Prometheus and Alertmanager Rules

Problem

The Pod Lifecycle Event Generator (PLEG) (introduced in Kubernetes 1.2) – a component which detects changes in container states locally – needs to remain in a "Healthy" state; it is imperative to proactively monitor vitals or metrics related to its health as it relates to the state of the node (which will transition into a "NotReady" state shall PLEG be deemed "Unhealthy" which will cease scheduling).

Environment

• Platform9 Managed Kubernetes – v5.4 and Higher

• Prometheus Monitoring

• Kubelet

Procedure

1. If Prometheus Monitoring is not already enabled (it should be enabled by default, but, for older clusters this may not apply), follow the instructions in Enable In-Cluster Monitoring.

2. Download Kubeconfig.

3. Export Kubeconfig.

Bash

export KUBECONFIG=~/<cluster-name>.yaml

1. List the PrometheusRules in the pf9-monitoring namespace.

Bash

$ kubectl -n pf9-monitoring get prometheusrules.monitoring.coreos.com
NAME                      AGE
system-prometheus-rules   22m

1. Edit the system-prometheus-rules object and add the following rules.

Bash

$ kubectl edit -n pf9-monitoring prometheusrules.monitoring.coreos.com system-prometheus-rules

Bash

spec:
  groups:
  - name: kube-events
    rules:
    - alert: KubeletPlegDurationHigh
      annotations:
        message: 'The Kubelet Pod Lifecycle Event Generator has a 99th percentile
          duration of {{ $value }} seconds on node {{ $labels.node }}.'
      expr: |
        node_quantile:kubelet_pleg_relist_duration_seconds:histogram_quantile{quantile="0.99"} >= 10
      for: 5m
      labels:
        severity: warning

[...]

  - name: kubelet.rules
    rules:
    - expr: |
        histogram_quantile(0.99, sum(rate(kubelet_pleg_relist_duration_seconds_bucket[5m])) by (cluster, instance, le) * on(cluster, instance) group_left(node) kubelet_node_name{job="kubelet", metrics_path="/metrics"})
      labels:
        quantile: "0.99"
      record: node_quantile:kubelet_pleg_relist_duration_seconds:histogram_quantile

1. Access the Prometheus UI via Qbert API proxy (similar to Grafana) or via kubectl port-forward associated with the prometheus-operated service exposed on TCP/9090.

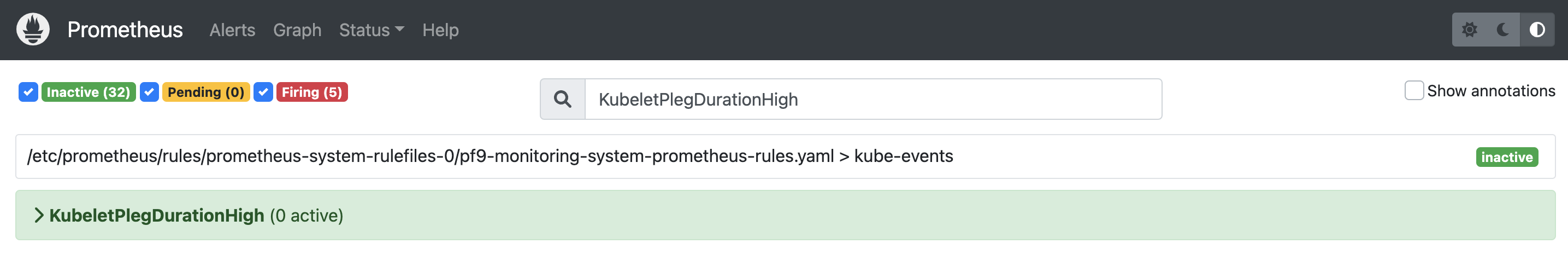

2. Navigate to the Alerts tab.

3. Search for and/or verify from the list of alarms that the KubeletPlegDurationHigh alarm has been added and is showing green.
