Quick Setup Guide For PMB

This article provides a quick setup guide for Platform9 Managed Bare-Metal (PMB). If you are new to PMB, we recommend starting with Platform9 Managed Bare Metal Overview and Platform9 Managed Bare Metal Architecture first. PMB transforms your bare metal physical servers into a fully automated, zero-touch bare-metal cloud that is ready to run virtualization, Kubernetes or any other application. This guide is intended to help set up testing or proof of concept environments.

Requirements for Platform9 Managed Bare-Metal

Below is a summary of requirements to deploy a proof of concept or bare-metal testing environment.

• Bare-Metal Controller

  • Role: Bare-Metal Controller
    • Physical or Virtual
    • OS Linux RHEL/CentOS
    • Connectivity: Outbound HTTPS connectivity on 443 to platform9.net
    • Server Requirements:
      • CPU - 4
      • RAM - 16 GB
      • Storage - 120 GB
      • Networking: 1 NIC attached to the provisioning network

• Provisioning Network

  • Role: A dedicated flat network for bare-metal node orchestration utilizing IPMI

• Bare-Metal Nodes

  • Role: Target physical servers to be part of the bare-metal cloud
    • 1 to 3 physical servers
    • Server Requirements:
    • CPU - 4
    • RAM - 16 GB
    • Storage - 120 GB
    • Networking: 1 NIC attached to the provisioning network

• Application and Operating System images

Requirements for Integrating Bare-Metal Cloud with PMK or PMO

• Number of Servers: 1-3 physical servers configured (3 Recommended)

  • CPU: Minimum 8 Physical Cores (Recommended 2 Physical Sockets, 8 Cores Each)RAM: Minimum 16 GB, (Recommended 32 GB)
  • Storage: Minimum 100 GB, (if Virtual Kubernetes Machines are run utilizing local storage, the recommended size is 1 TB)
  • Two physical servers; one to function as a bare-metal Controller and one to test the bare-metal cloud discovery and orchestration

• Networking Requirements for Provisioned Servers

  • A provisioning network without DHCP enabled, with a reachable subnet gateway IP
  • A NIC on each server attached to the dedicated provisioning network, with PXE Boot enabled
  • A management network with outbound connectivity on port 443 where access to platform9.net has been confirmed
  • A second NIC on each server attached to the management network

• Supported OS s

  • CentOS 7+ (64-bit)
  • RHEL 7+ (64-bit)
  • Ubuntu LTS 18.04 (64-bit)
  • Ubuntu LTS 20.04 (64-bit)

Overview of Bare-Metal Deployment Steps

1. Sign up and login to the Platform9 SaaS Management platform

2. Configure the target physical servers and physical network

3. Ensure both PXE Boot and IPMI 2.0 is supported and configured across all physical servers. Ensure the required IPMI credentials are available

4. Provision a bare-metal Controller as host with at least 2 NICs and then install a supported OS (e.g. CentOS/RHEL 7.6)

5. From the host bare-metal Controller, validate connectivity to the Platform9 SaaS management plane on port 443

6. Document the following network settings:

   1. Provisioning Network Subnet
   2. Gateway IP Address
   3. DNS Domain
   4. DNS Forwarding Addresses
   5. Bare-metal IP Address

7. Complete the bare-metal Controller Linux preparation steps, and then set up the network bridge and Open vSwtich configurations for the provisioning and management networks

8. Log into Platform9 and start the bare-metal onboarding wizard:

   1. Configure the physical network properties
   2. Download & Run the bare-metal Agent Software
   3. Configure the bare-metal Controller Properties, ensuring the correct networks are configured for management and bare-metal cloud provisioning
   4. Configure the Provisioning Network subnet, ensuring the subnet allocation pool doesn’t overlap the bare-metal Controller IP
   5. Copy the OpenStack RC prompt and execute on the bare-metal Controllers
   6. Copy and run setup-ironic on the bare-metal Controller

1. Prepare the Bare-Metal Controller

The bare-metal Controller software components can be installed into RedHat Enterprise Linux 7.6 or CentOS 7.6. Once the OS is installed, prepare it by running the following commands (the commands below will ensure the bare-metal Controller host is correctly configured prior to the installation of the Platform9 HostAgent).

sudo sed -i s/SELINUX=enforcing/SELINUX=permissive/g /etc/selinux/config

sudo setenforce 0

sudo getenforce

sudo systemctl disable firewalld

sudo systemctl stop firewalld

sudo systemctl disable NetworkManager

sudo systemctl stop NetworkManager

sudo systemctl enable network

sudo modprobe bridge

sudo modprobe 8021q

sudo modprobe bonding

sudo modprobe tun

sudo modprobe br_netfilter

echo "bridge" |  sudo tee /etc/modules-load.d/pf9.conf

echo "8021q" | sudo tee --append /etc/modules-load.d/pf9.conf

echo "bonding" | sudo tee --append /etc/modules-load.d/pf9.conf

echo "tun" | sudo tee --append /etc/modules-load.d/pf9.conf

echo "br_netfilter" | sudo tee --append /etc/modules-load.d/pf9.conf

echo "net.ipv4.conf.all.rp_filter=0" | sudo tee --append /etc/sysctl.conf

echo "net.ipv4.conf.default.rp_filter=0" | sudo tee --append /etc/sysctl.conf

echo "net.bridge.bridge-nf-call-iptables=1" | sudo tee --append /etc/sysctl.conf

echo "net.ipv4.ip_forward=1" | sudo tee --append /etc/sysctl.conf

echo "net.ipv4.tcp_mtu_probing=1" | sudo tee --append /etc/sysctl.conf

sysctl -p

sudo yum -y install https://s3-us-west-1.amazonaws.com/platform9-neutron/noarch/platform9-neutron-repo-1-0.noarch.rpm

sudo yum install python-six unbound-libs

sudo yum -y install --disablerepo="*" --enablerepo="platform9-neutron-repo" openvswitch

echo -e "\e[31;43m * Enable and start Open vSwitch *\e[0m"

sudo systemctl enable openvswitch

sudo systemctl start openvswitch

yum -y install net-tools

yum -y install epel-release

2. Bare-Metal Onboarding Setup

To create a bare-metal cloud, the first step is to complete the onboarding wizard. On logging into the Platform9 SaaS Management Plane, a step-by-step guide will walk through the required setup, starting with the creation of the provisioning network. Onboarding is made up of seven steps, each of which is explained below.

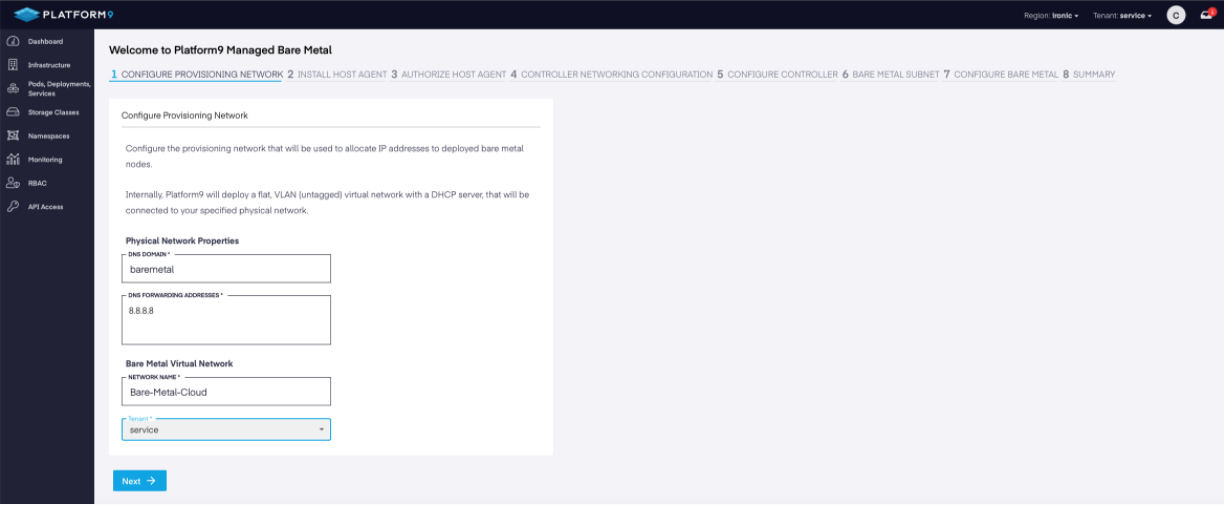

Onboarding Step 1 - Configure the Physical Provisioning Network

Configure the provisioning network that will be used to allocate IP addresses to deployed bare-metal nodes.

Onboarding Wizard

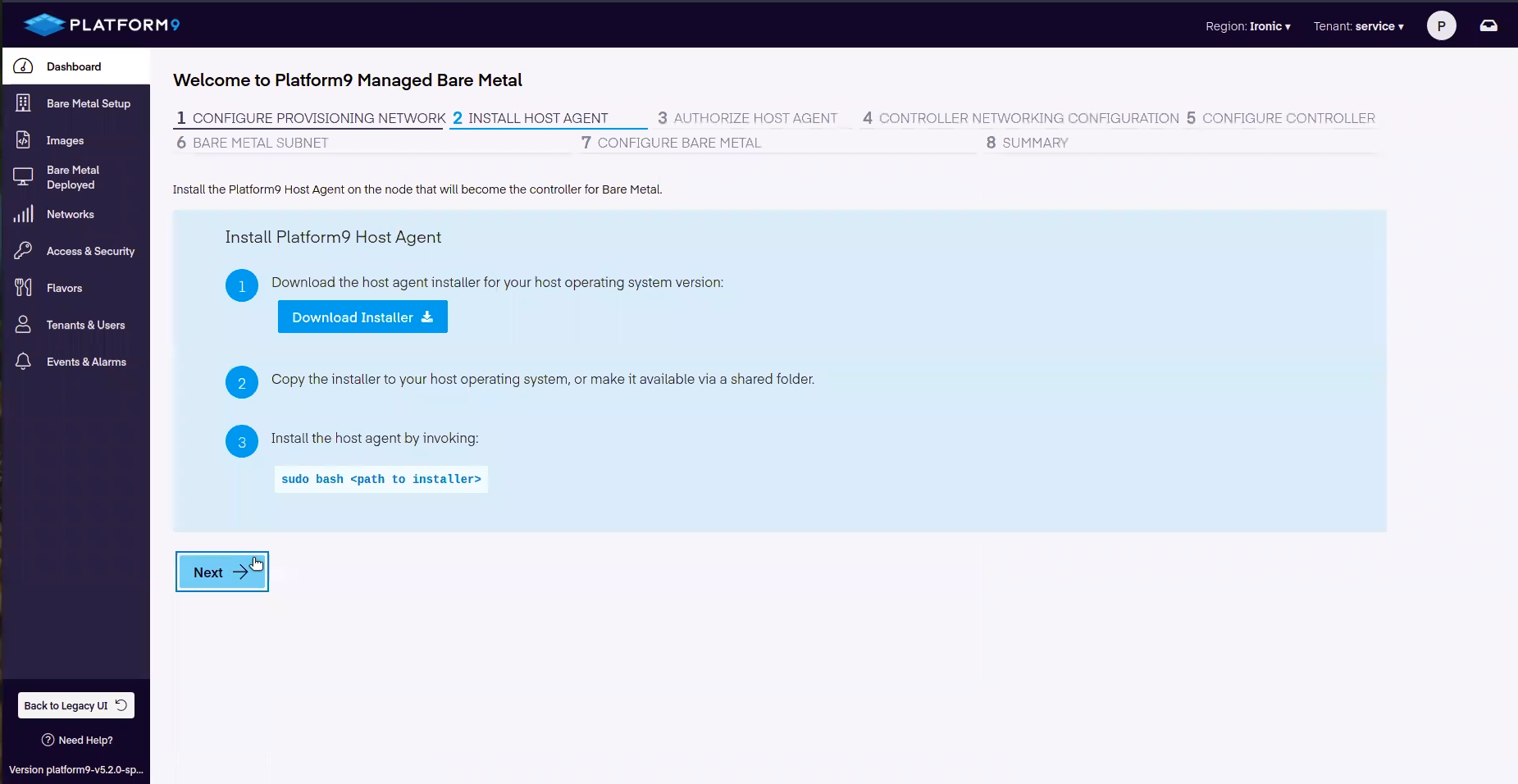

Onboarding Step 2 - Download and install the Platform9 HostAgent

In step two, we download the Platform9 HostAgent and then SCP or FTP the binary to the Controller. The HostAgent will connect the Controller to the Platform9 SaaS Management Plane.

Alternative Download: Direct to Controller

Alternatively, you can pull the Platform9 HostAgent, pf9-download.py directly from our secure GitHub repository, To download the Platform9 Installer from GitHub, run the following curl command.

curl -LO https://raw.githubusercontent.com/platform9/support-locker/master/installer/pf9-download.py

Once the download is complete, run the pf9-download.py Platform9 Installer using your details. Note the following examples.

./pf9-download.py --account_endpoint <your_du_name>.platform9.net --region <ironic> --user <user_id> --platform <OS>

• Example Account endpoint (users du name): ironic.platform9.net
• Example Region: US-West-Ironic
• Example User: user@platform9.com
• Example Platform: redhat

Full command example:

./pf9-download.py --account_endpoint "ironic.platform9.net" --region US-West-Ironic --user user@platform9.com --platform redhat

The platform9-install script contains the required inputs that map to the bare-metal region in your Platform9 setup.

Example: platform9-install-us-mpt1-ironic-redhat.sh

bash ./platform-install-<region>-<OS-Option>.sh

Once the installation is finished, return to the on-boarding workflow to authorize the Controller.

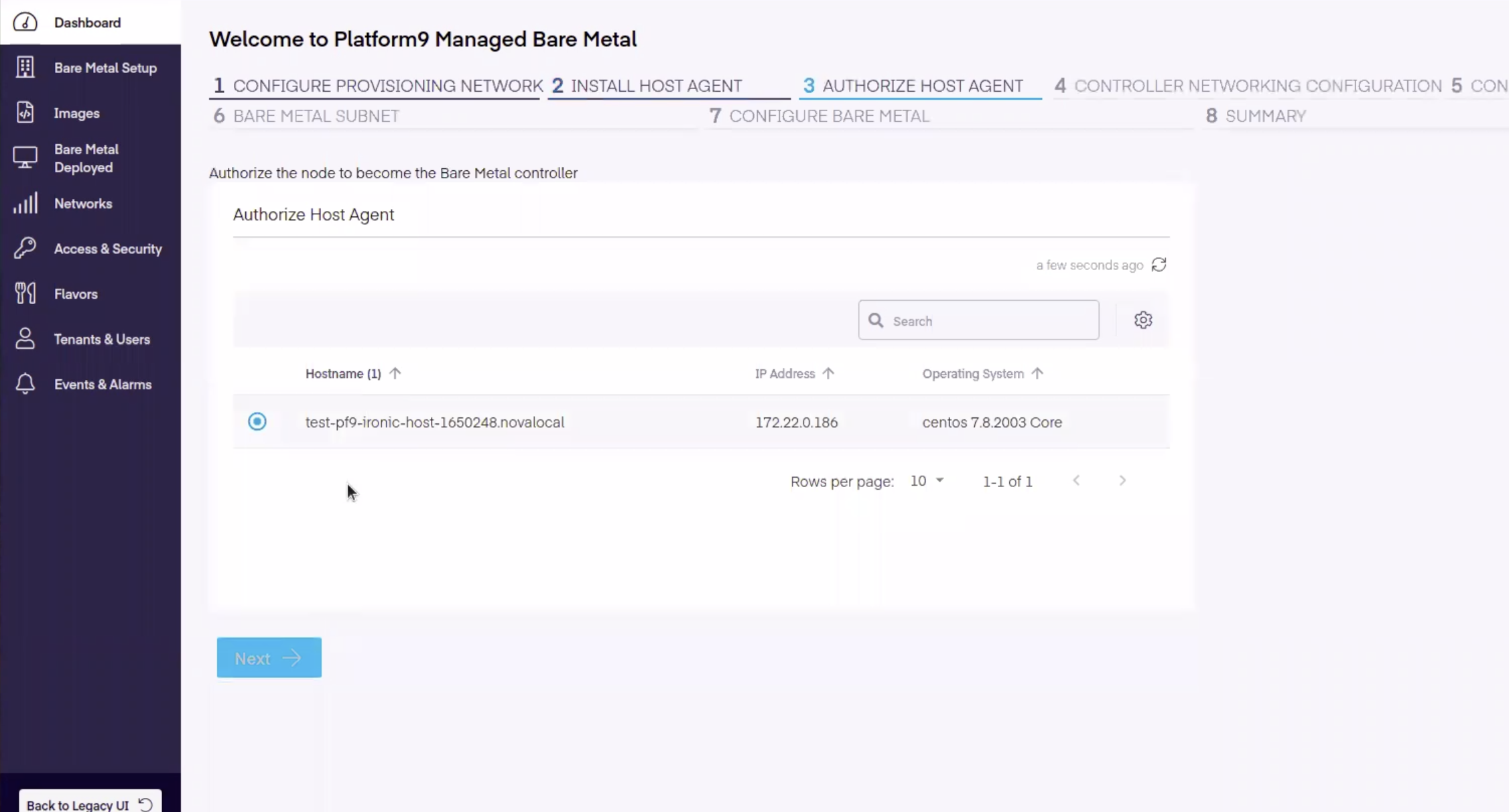

Onboarding Step 3 - Authorize the Platform9 HostAgent

Next, select the host to authorize / onboard and click Next.

Onboarding Step 4 - Configure Controller Networking

Following option is required to create the controller bridge:

• Provisioning Network Interface

Onboarding Step 5 - Controller Configuration

The Controller needs to be configured to operate on the correct network. To complete the setup, the following inputs are required:

• DNSmasq and IP
• Bridge Device

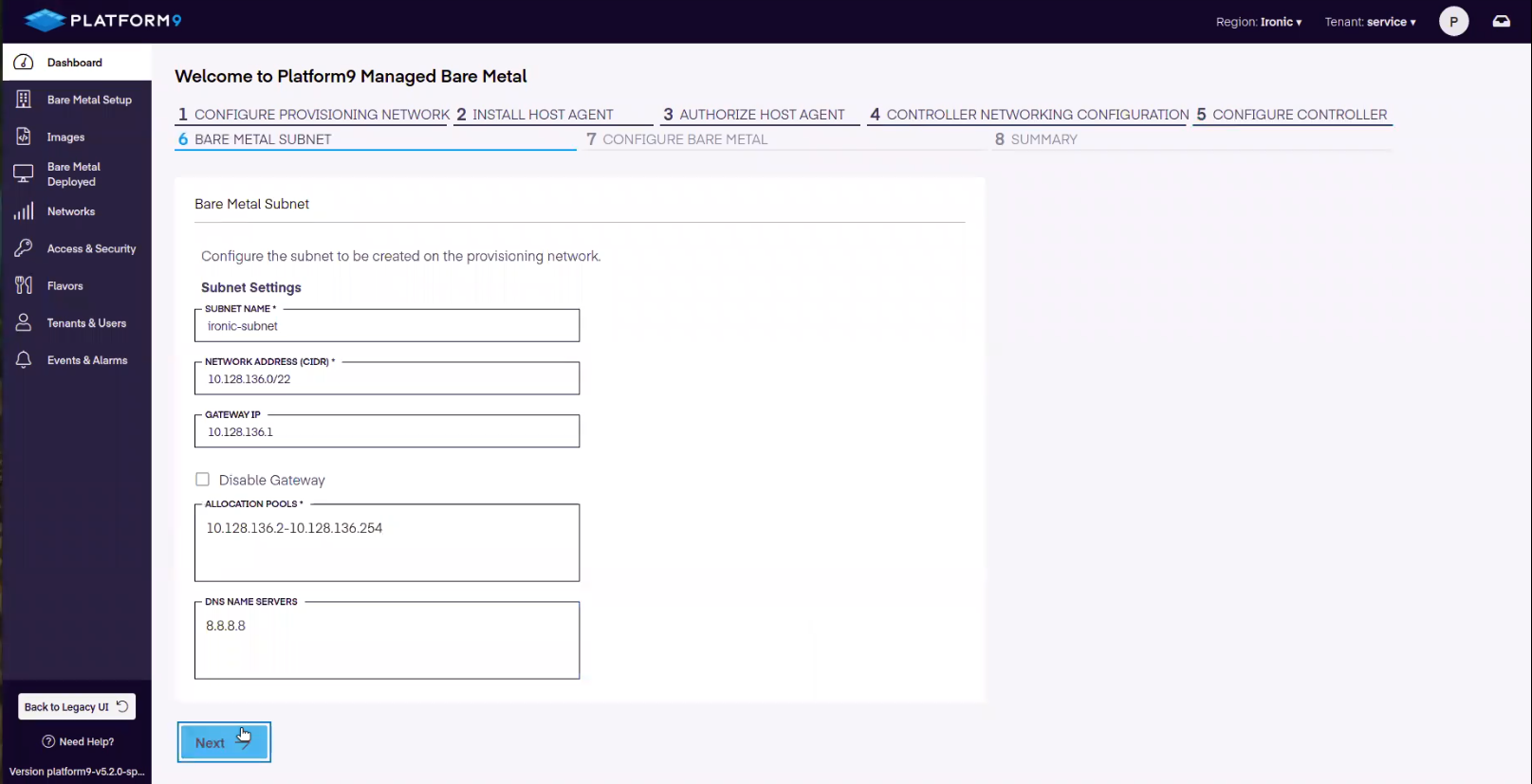

Onboarding Step 6 - Bare-Metal Cloud Network

The next step is to create the network that the bare-metal nodes will be provisioned to. We add this by providing the following information:

• Subnet Name
• Network Address CIDR
• Gateway IP
• Allocation Pool
• DNS Name Servers

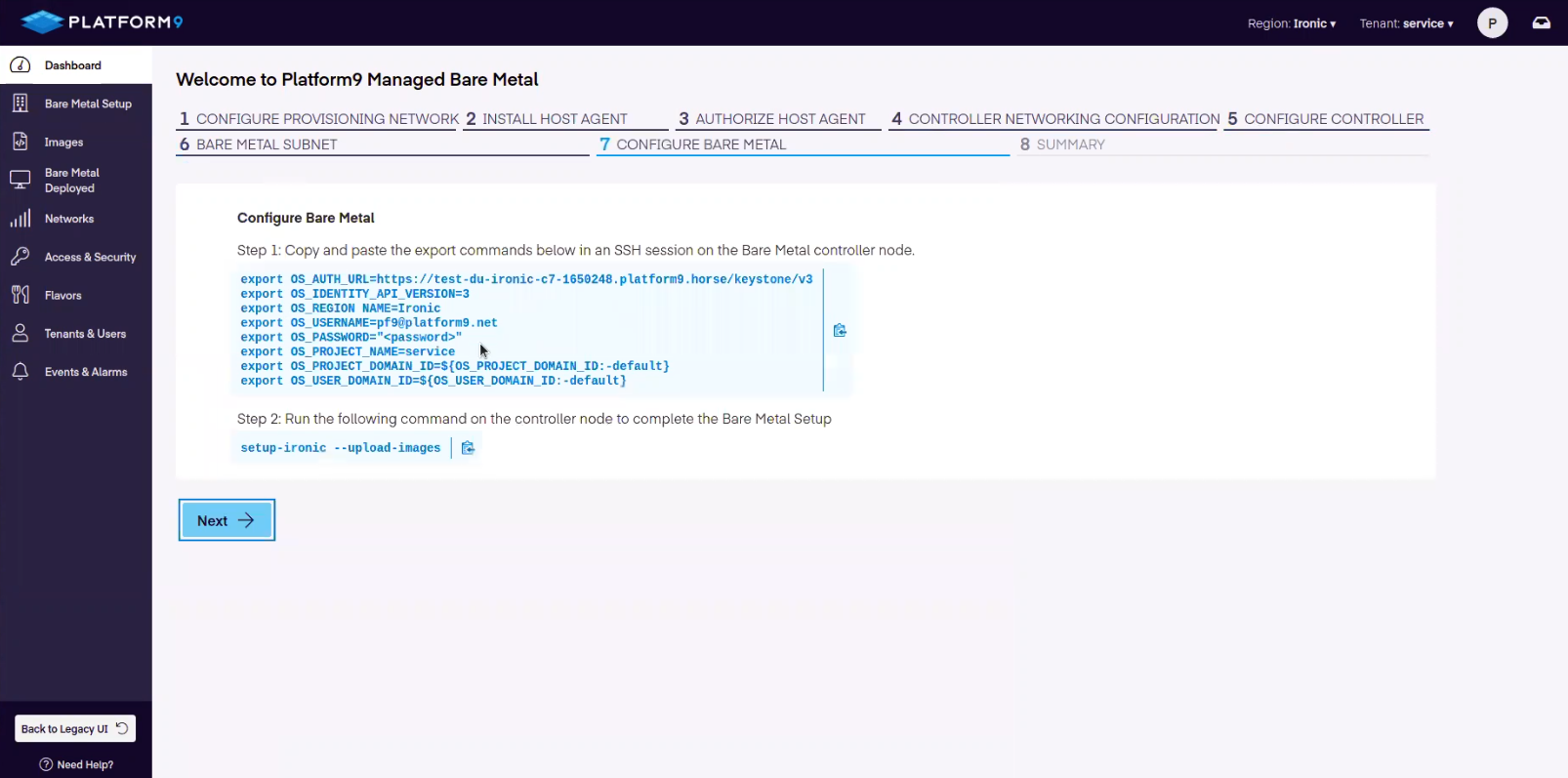

Onboarding Step 7 - Configure Bare Metal

Executing this command will upload the required kernel and ram disk images to Glance that PMB will use to onboard bare-metal nodes.

setup-ironic --upload-images

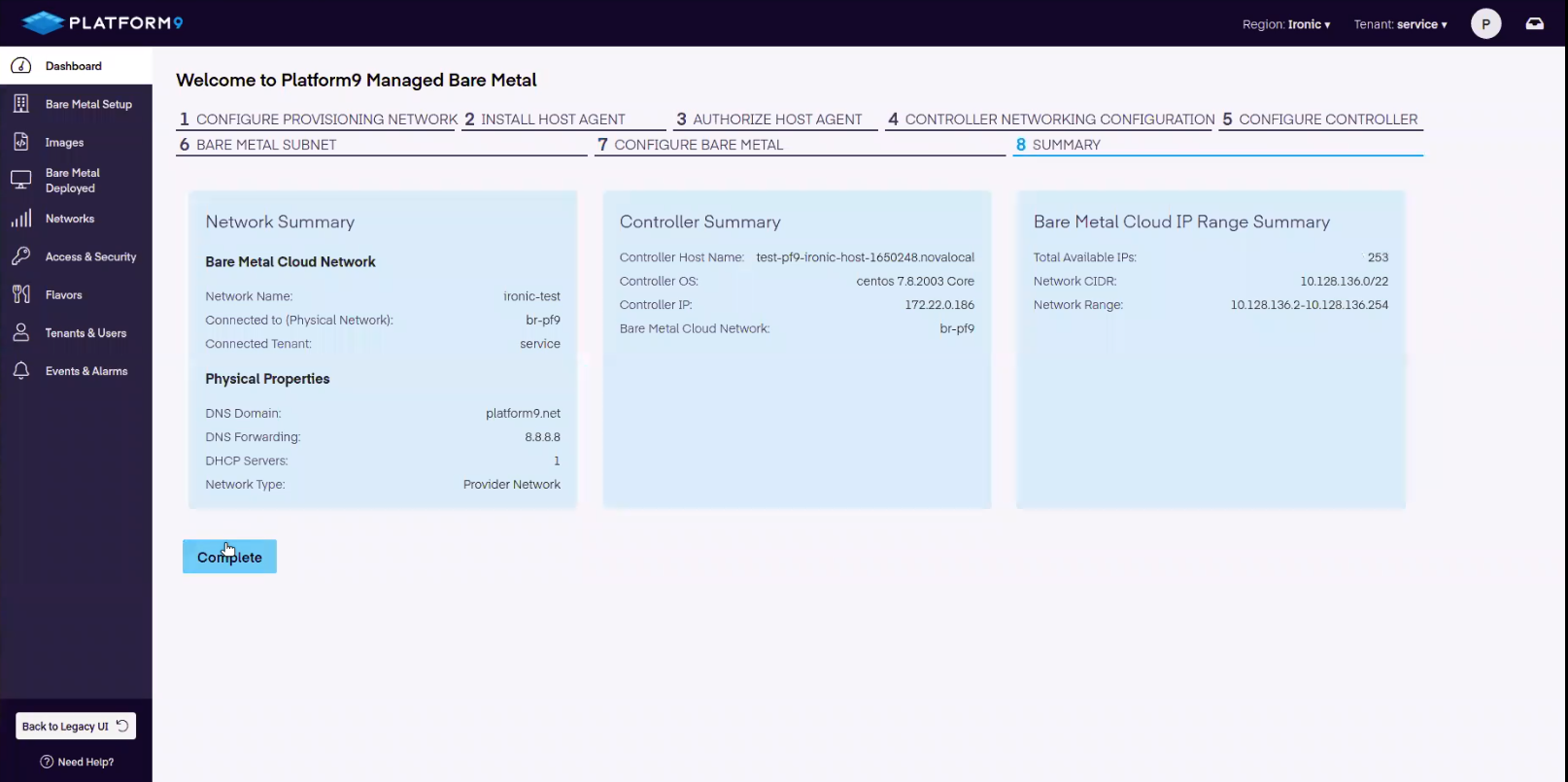

Onboarding Step 8 - Summary and Review

The bare-metal onboarding is now complete. The summary will display the newly configured bare-metal Controller and bare-metal cloud network. If everything looks okay, proceed by adding the bare-metal server(s) to your PMB account.

3. Configure Bare-Metal Inspection

The inspection rules are critical to the proper onboarding of physical servers and allow the auto_discovery to apply specific metadata to the discovered instances. The metadata is useful for creating custom hardware inventory items that can separate out nodes by available capabilities.

Alternatively, the inspection rule file may be edited and uploaded directly to the bare-metal Controller via SSH.

Example Custom Inspection Rule

{

      "description": "Set default IPMI credentials",

      "conditions": [ {"op": "eq", "field": "data://auto_discovered", "value": true} ],

      "actions": [

          {"action": "set-attribute", "path": "driver", "value": "ipmi"},

          {"action": "set-attribute", "path": "driver_info/ipmi_username", "value": "root"},

          {"action": "set-attribute", "path": "driver_info/ipmi_password", "value": "root"},                      {"action": "set-attribute", "path": "properties/capabilities", "value": "boot_option:local"},           {"action": "set-attribute", "path": "driver_info/deploy_kernel", "value": "f6a532ca-c4b2-4dfc-9d50-17ba5ad7c8f8"},

          {"action": "set-attribute", "path": "driver_info/deploy_ramdisk", "value": "eb2dfa00-a9e4-49a5-a83e-8b2cb0a72c8e"}

      ]

  }

To implement the new inspector rule, run the commands below on the bare-metal Controller

TOK=openstack token issue -f value -c id

​

curl -X POST -i http://localhost:5050/v1/rules -H "x-auth-token: $TOK" -H "content-type: application/json" -d @inspector-rules.json

Alternatively, the OpenStack CLI may be used to import the rules.json file.

Next, activate the virtual environment.

source pf9-oscli/bin/activate

Then, run the following OpenStack CLI Commands.

openstack baremetal introspection rule import inspector-rules.json

​

openstack baremetal introspection rule list

​

openstack baremetal introspection rule show <rule-uuid>

4. Discover and Onboard Physical Servers

The discovery of physical servers is the process that catalogs and identifies the physical server infrastructure that is to be added into the bare-metal cloud. To drive discovery, Platform9 recommends utilizing the IPMI tools that are present on the bare-metal Controller.

ipmitool -I lanplus -H <Host_IPMI_IP> -L ADMINISTRATOR -U root -P root power status

Chassis Power is off

​

ipmitool -I lanplus -H <Host_IPMI_IP> -L ADMINISTRATOR -U root -P root chassis bootdev pxe

Set Boot Device to pxe

​

ipmitool -I lanplus -H <Host_IPMI_IP> -L ADMINISTRATOR -U root -P root chassis power on

Chassis Power Control: Up/On

Deactivate Venv

Lastly, deactivate the virtual environment.

deactivate
