This article describes the steps to create a Kubernetes cluster that is managed by Platform9 Managed Kubernetes (PMK) on Google Cloud.

What you’ll need

Access to the inbox of a valid email address.
Google Cloud account with at least 1 active project.
- For this tutorial, we will be using a project named "Platform9 Demo".
  - The project will need access to the Google Compute Engine API.
Access to a GNU/Linux system/shell/terminal.

Looking to dive deeper? Check out the full Imported GKE Clusters for more extensive, provider-specific information.

Installing and Configuring Local Tools

Install the Google Cloud CLI.

Bash

​x

# Add the Cloud CLI distribution URI as a package source​$ echo "deb [signed-by=/usr/share/keyrings/cloud.google.gpg] https://packages.cloud.google.com/apt cloud-cli main" | sudo tee -a /etc/apt/sources.list.d/google-cloud-sdk.list​# Import the Google Cloud Platform public key​$ curl https://packages.cloud.google.com/apt/doc/apt-key.gpg | sudo apt-key --keyring /usr/share/keyrings/cloud.google.gpg add -​# Update the package list and install the Cloud SDK​$ sudo apt-get update && sudo apt-get install google-cloud-cli
Copy

Configure the CLI to use your Google Cloud credentials.

Bash


$ gcloud init
Copy

Select the default project for the CLI.

Bash


You are logged in as: [mike@gmail.com].​Pick cloud project to use: [1] platform9-demo-274119 [2] Create a new projectPlease enter numeric choice or text value (must exactly match list item):
Copy

Select the first option (which matches the project we created for the demo).
To make it easier to provision new compute resources, set the default zone.

Bash


$ gcloud config set compute/zone us-west1-a
Copy

Creating Virtual Machine (VM) Instance

List the public images available on the Google Compute Engine.

Bash


$ gcloud compute images list
Copy

Based on the previous output, identify the image for Ubuntu 18.04 LTS (which we'll use in this example), and create a VM instance with the name demo-cluster-1.

Bash


$ gcloud compute instances create demo-cluster-1 \        --image-family ubuntu-1804-lts \        --image-project ubuntu-os-cloud        Created [https://www.googleapis.com/compute/v1/platform9-demo-274119/zones/us-west1-a/instances/demo-cluster-1].NAME            ZONE         MACHINE_TYPE   PREEMPTIBLE   INTERNAL_IP   EXTERNAL_IP    STATUSDemo-cluster-1  us-west1-a   n1-standard-1                10.138.0.2    35.233.254.6   RUNNING
Copy

Note: record the EXTERNAL_IP as we'll need it in a few steps.

Establish an SSH connection to the VM instance.

Bash


gcloud compute ssh demo-cluster-1
Copy

This command creates the necessary SSH keys, and logs you into the instance. The username is the same name you used to log into the terminal from which you’re working.

Bash


mike@demo-cluster-1:~$
Copy

Attach VM Instance to Platform9

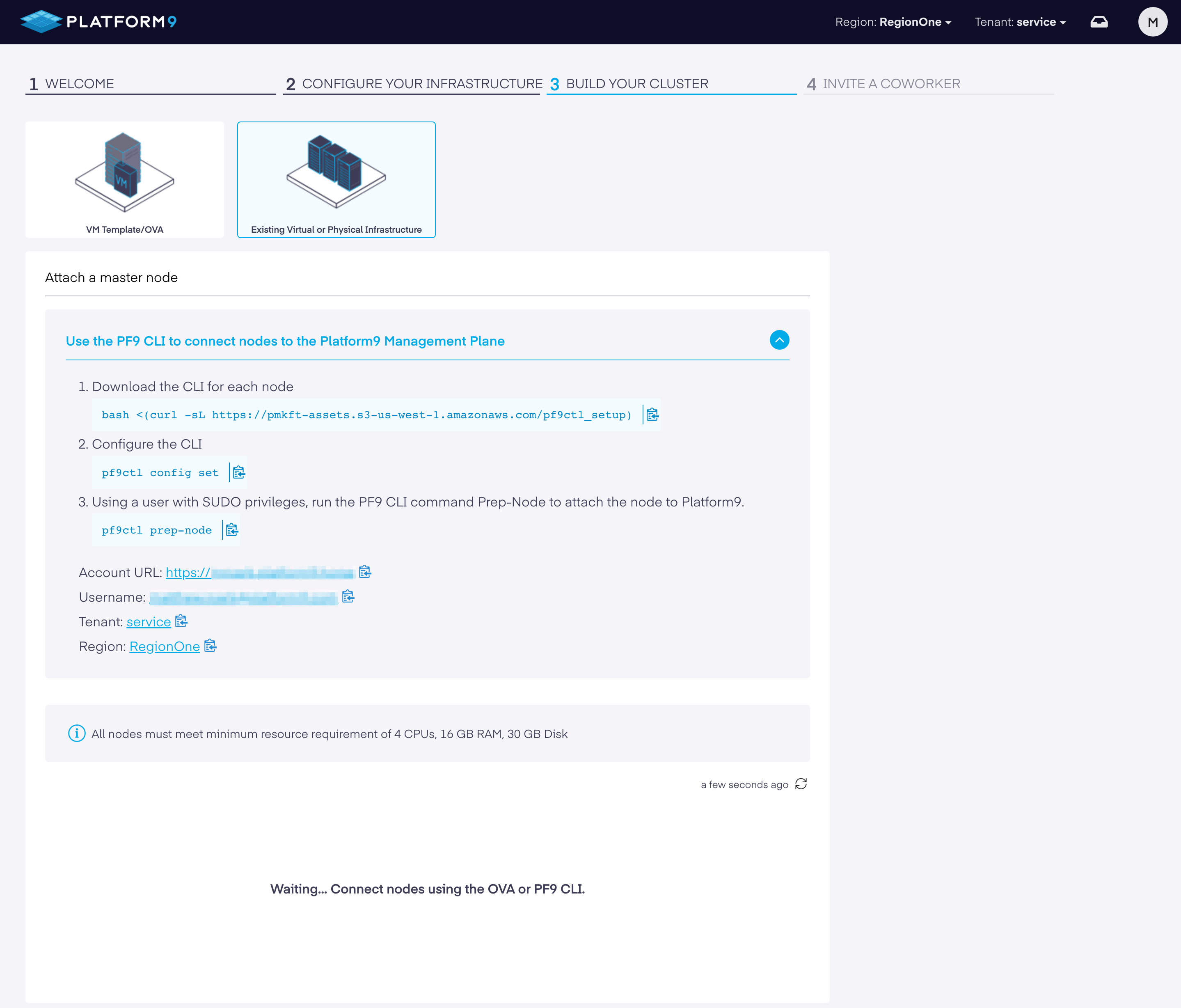

From your PMK Dashboard, select "My Infrastructure".

Select "Existing Virtual or Physical Infrastructure".

This area will give you direction about how to load our CLI on the VM instance you are SSH'd in to. You then configure the CLI to talk back to your PMK instance.

Note: when running the pf9ctl config set command, you will be prompted to provide your account credentials which were established earlier.

The pf9ctl prep-node command will install your customized PF9 agent and begin promoting the VM as a PMK node. The node will show up in the UI shortly after completion.

Prepare Node - Pre-Requisite Check(s) Failed


✓ Loaded Config Successfully✓ Missing package(s) installed successfully✓ Removal of existing CLI✓ Existing Platform9 Packages Check✓ Required OS Packages Check✓ SudoCheck✓ CPUCheckx DiskCheck - At least 30 GB of total disk space and 15 GB of free space is needed on host. Disk Space found: 2 GBx MemoryCheck - At least 12 GB of memory is needed on host. Total memory found: 4 GB✓ PortCheck✓ Existing Kubernetes Cluster Check​✓ Completed Pre-Requisite Checks successfully​Optional pre-requisite check(s) failed. Do you want to continue? (y/n)
Copy

Debugging

If you encounter the message: Failure to prepare node, please review the pf9ctl log file for additional context.

Enterprise – Please submit a Support Request with the log attached and our team will review and work with you to onboard the node.
