Migrate a Linux VM from vSphere to KVM

In this guide, we will migrate a Linux VM from vSphere to KVM. For VMs with multiple disks, see the support article on Migrate Secondary Linux VM Disk from vSphere to OpenStack for migrating the secondary disks, and follow the steps below for the boot disk.

Requirements

• A vSphere VM with Linux installed
• The VM must only have one boot disk.

Step 1 - Convert VMDK to QCOW2

After powering off the VM, note the path of the boot disk by editing the settings of the VM and selecting the Virtual Disk. The boot disk will usually be the first disk listed, unless there is a bios.hddOrder value in the .vmx file for the VM.

Copy the flat VMDK from the ESX host to the Image Library, or a machine with the qemu-img command available.

After copying, convert the VMDK to a QCOW2 image.

qemu-img convert -O qcow2 <input vmdk file> <ouput qcow2 file>

For example:

qemu-img convert -O qcow2 centos6-vm-migration-flat.vmdk centos6-vm-migration.qcow2

Step 2 - Upload the Image to the Image Library Host

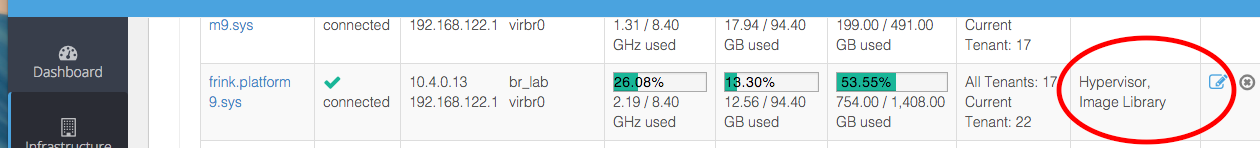

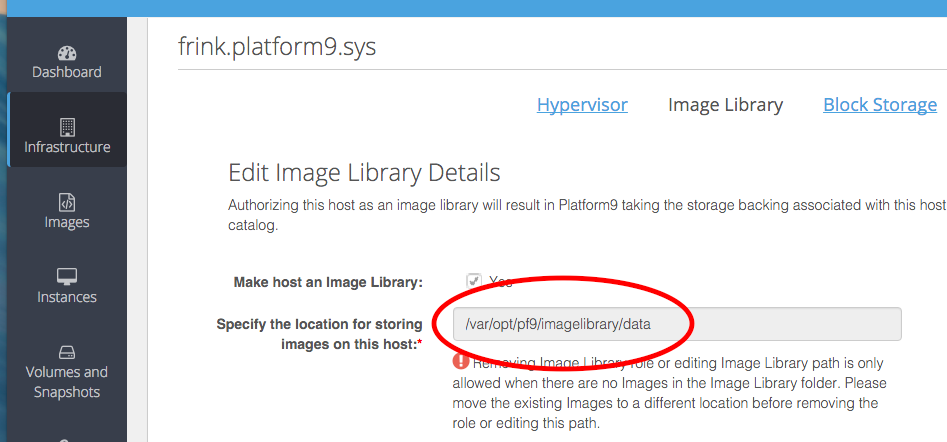

You can simply copy the converted qcow2 image to the Image library host's image directory.

OR

Follow our support guide on Managing Images with CLI if you are not familiar with the OpenStack Glance Client. Then, use the glance command to upload the image.

For example:

glance image-create --disk-format qcow2 \

--container-format bare \

--file centos6-vm-migration.qcow2 \

--visibility public \

--name centos6-vm-migration \

--property pf9_description="Linux VM migrated from vSphere" \

--property pf9_virtual_size=26422542336

Step 3 - Create an Instance

Create an instance as you normally would and your newly migrated Linux VM should now be running in a KVM environment.
